MINI E-Ambulance

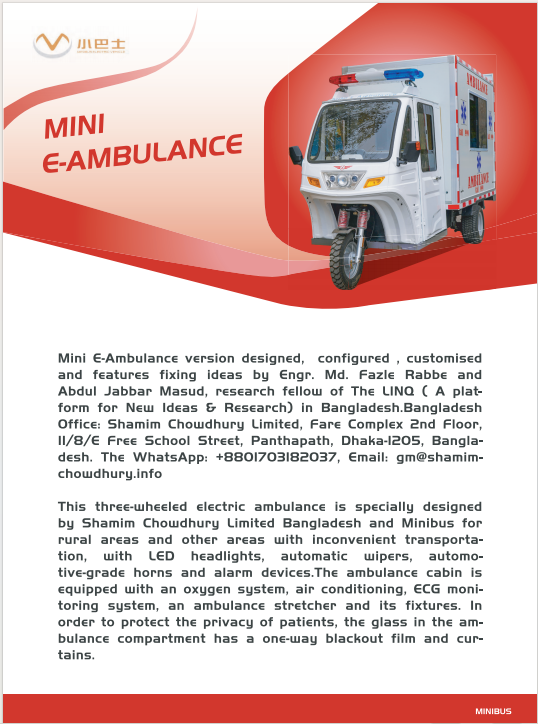

Mini E-Ambulance version designed, configured , customised and features fixing ideas by Engr.Md. Fazle Rabbe and Abdul Jabbar Masud, research fellow of The LINQ ( A platform for New Ideas & Research) in Bangladesh.Bangladesh Office: Shamim Chowdhury Limited, Fare Complex 2nd Floor, 11/8/E Free School Street, Panthapath, Dhaka-1205, Bangladesh. The WhatsApp: +8801703182037, Email: gm@shamimchowdhury.info
This three-wheeled electric ambulance is specially designed by Shamim Chowdhury Limited Bangladesh and Minibus for rural areas and other areas with inconvenient transportation, with LED headlights, automatic wipers, automotive-grade horns and alarm devices.The ambulance cabin is equipped with an oxygen system, air conditioning, ECG monitoring system, an ambulance stretcher and its fixtures. In order to protect the privacy of patients, the glass in the ambulance compartment has a one-way blackout film and curtains.

Product Description

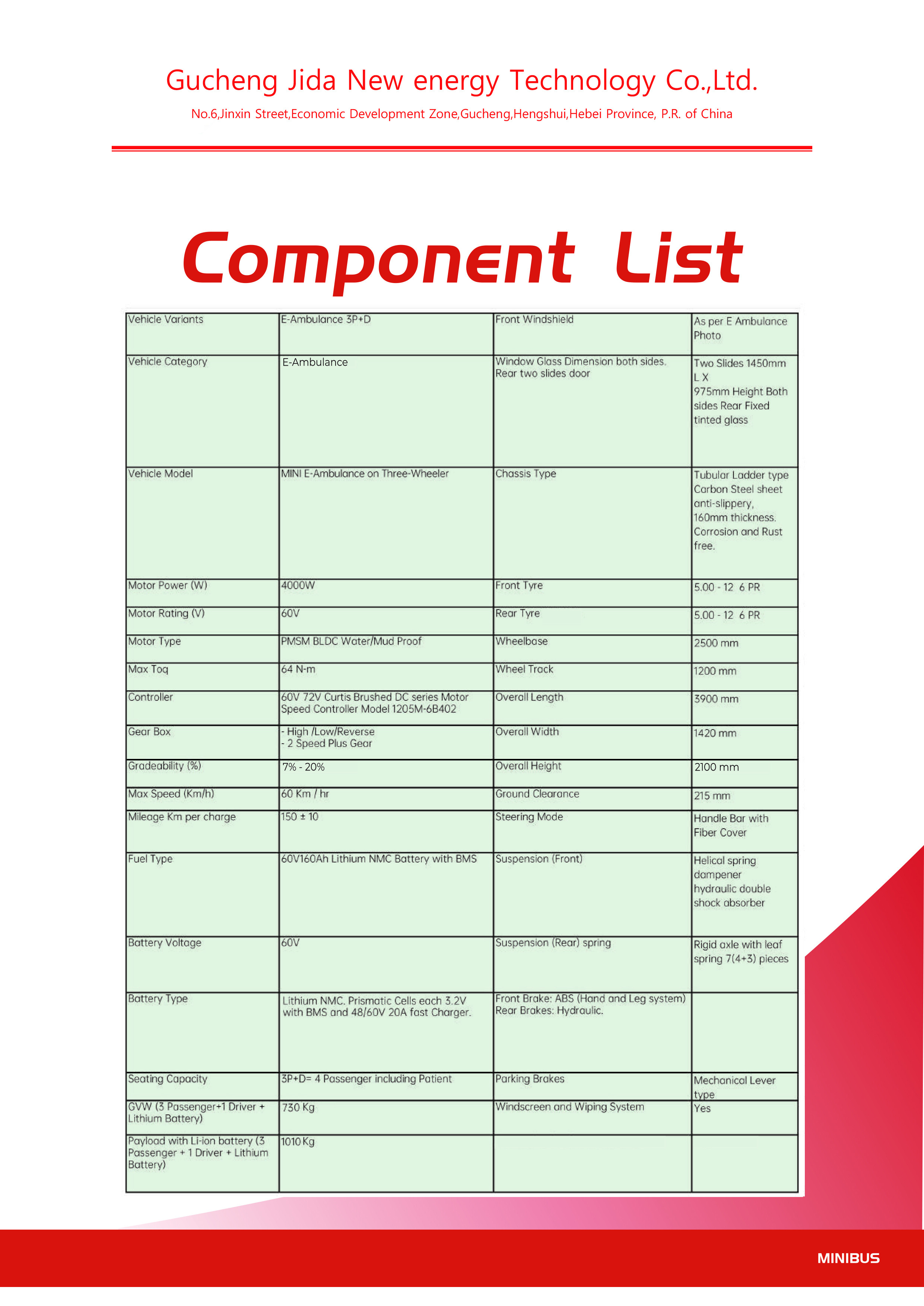

                                                                                     Parameter Table
Dimension(L*W*H)3900*1420*2200(mm)Wheeltrack1200mmMotor Rating60V
Ground Clearance
215 mmWeight680KGMotor Type PMSM
Wheelbase2500mmMotor Power4000WController:60V DC
Gradeablility19.5Max Speed60Km/hMileage150± 10 KM
Seats3P+DGear Box:High/Low/Reverse

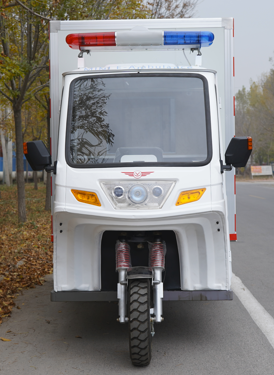

Front Outside View:

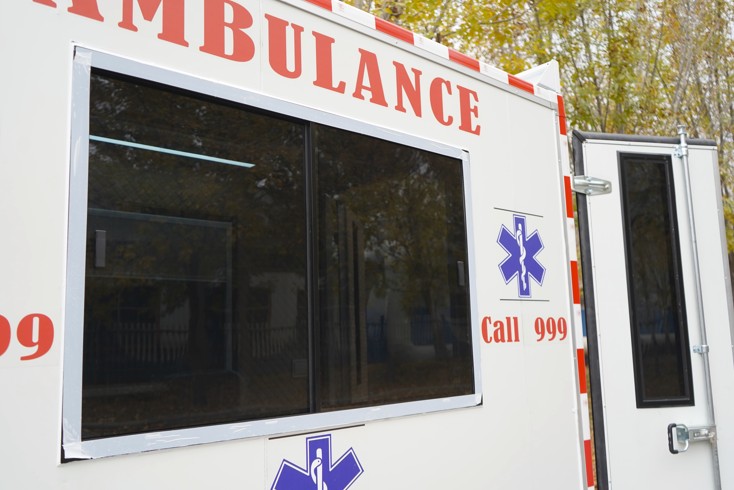

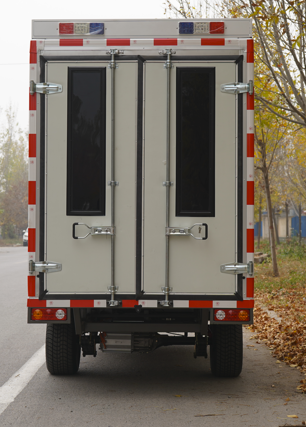

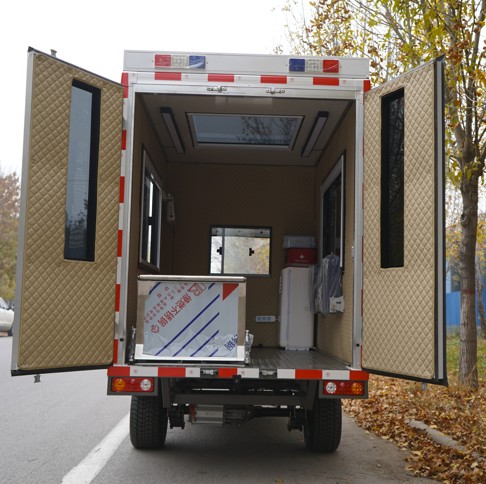

Rear Outside View:

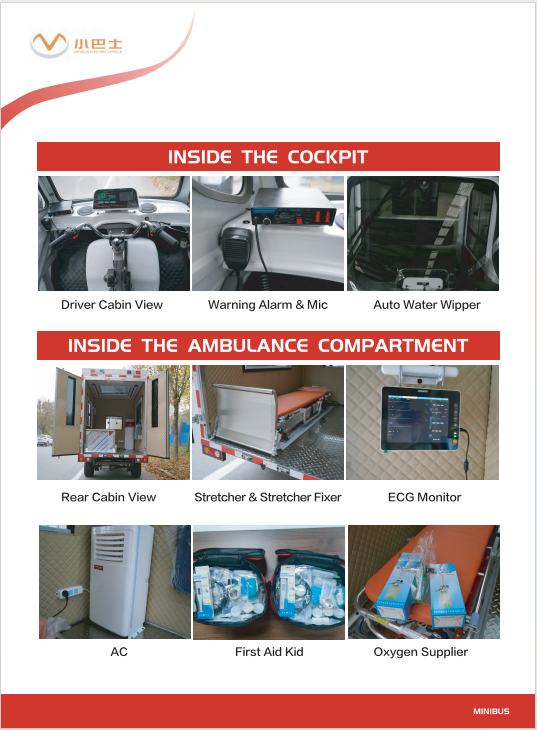

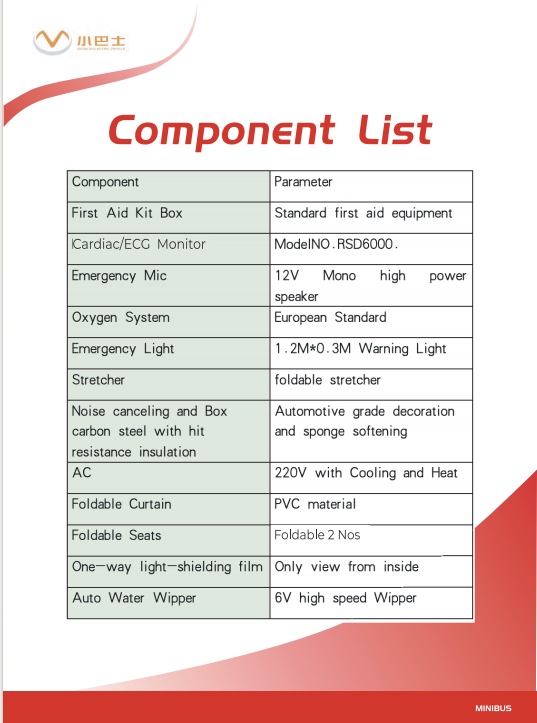

Inside Componet Details:

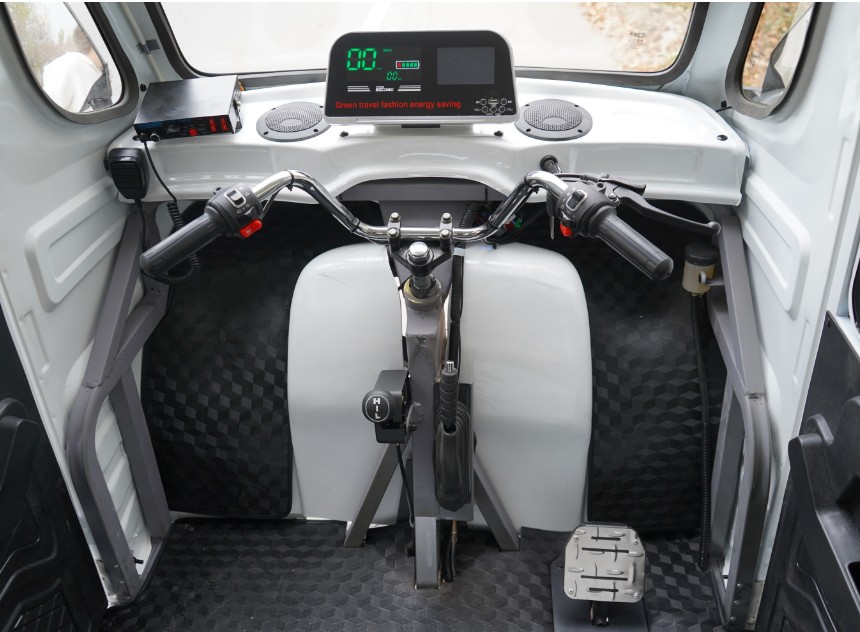

Driver Cabin View:

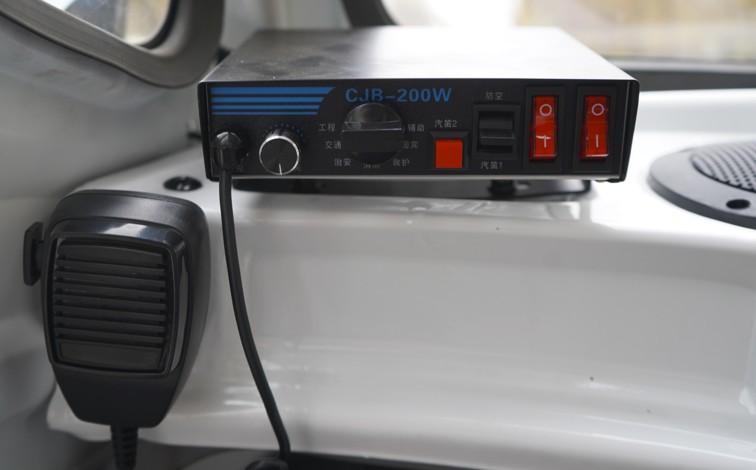

Warning Alarm and Mic:



Emergency Cabin View:

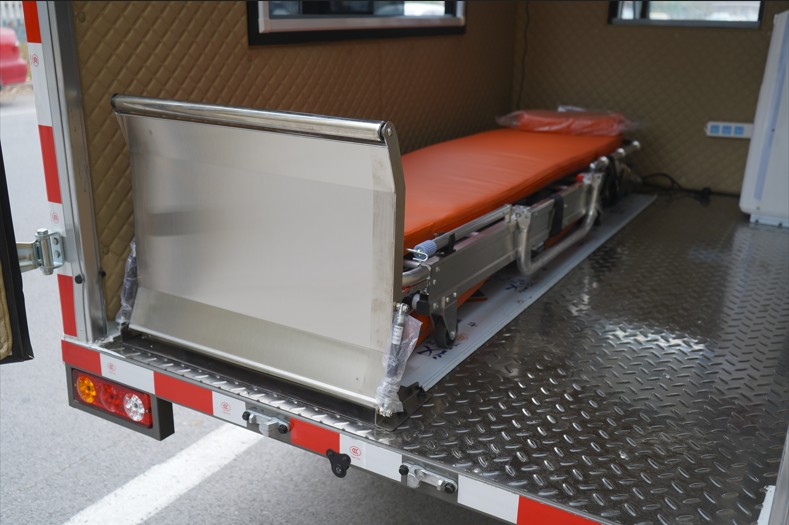

Strecher&Strecher Fixer:

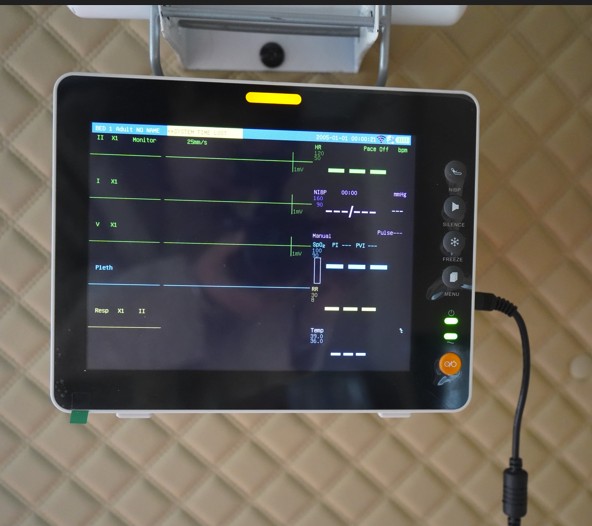

Monitor:

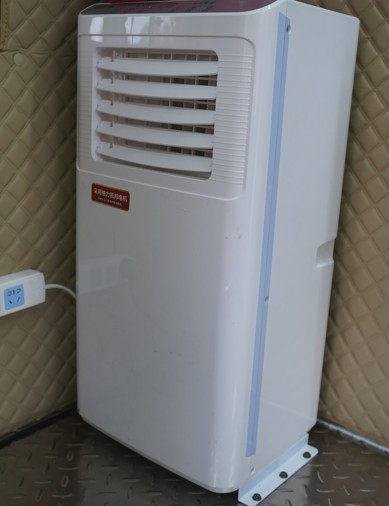

AC:



First Aid Kid:

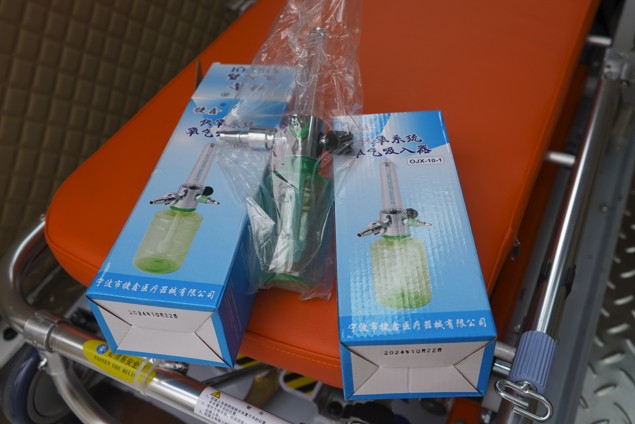

Oxygen system:

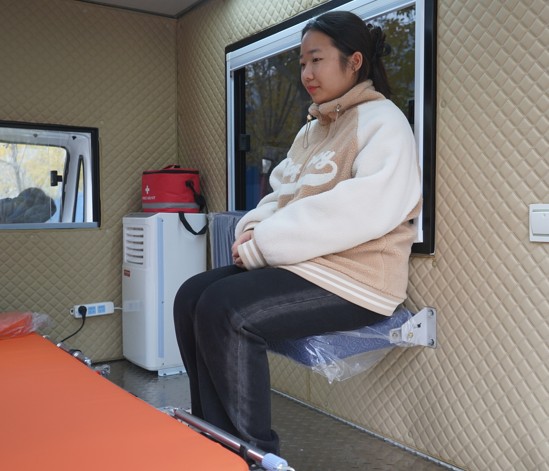

Foldable Chair:

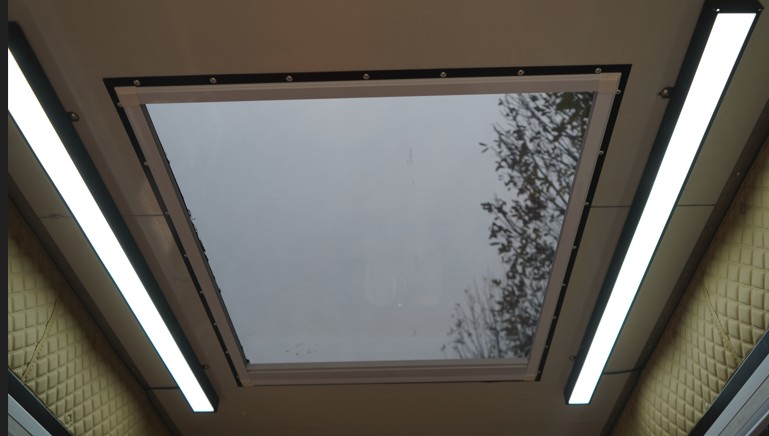

Roof Window:

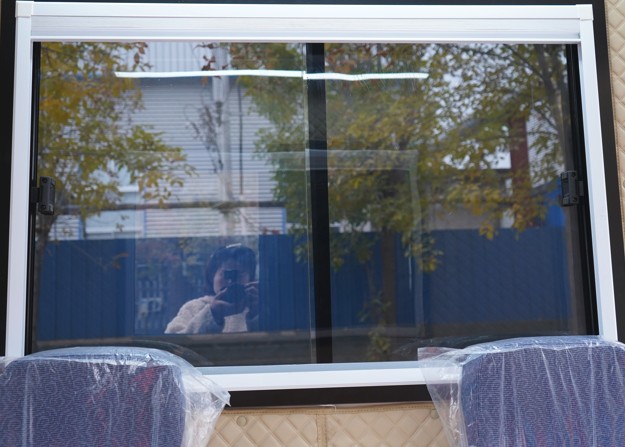

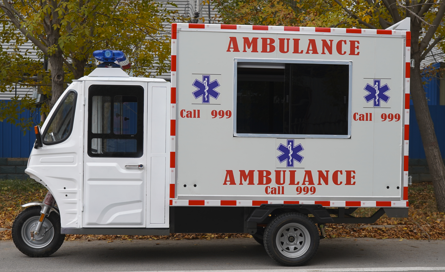

One Side View Window:
